2025 Toyota Landcruiser Quick Reference

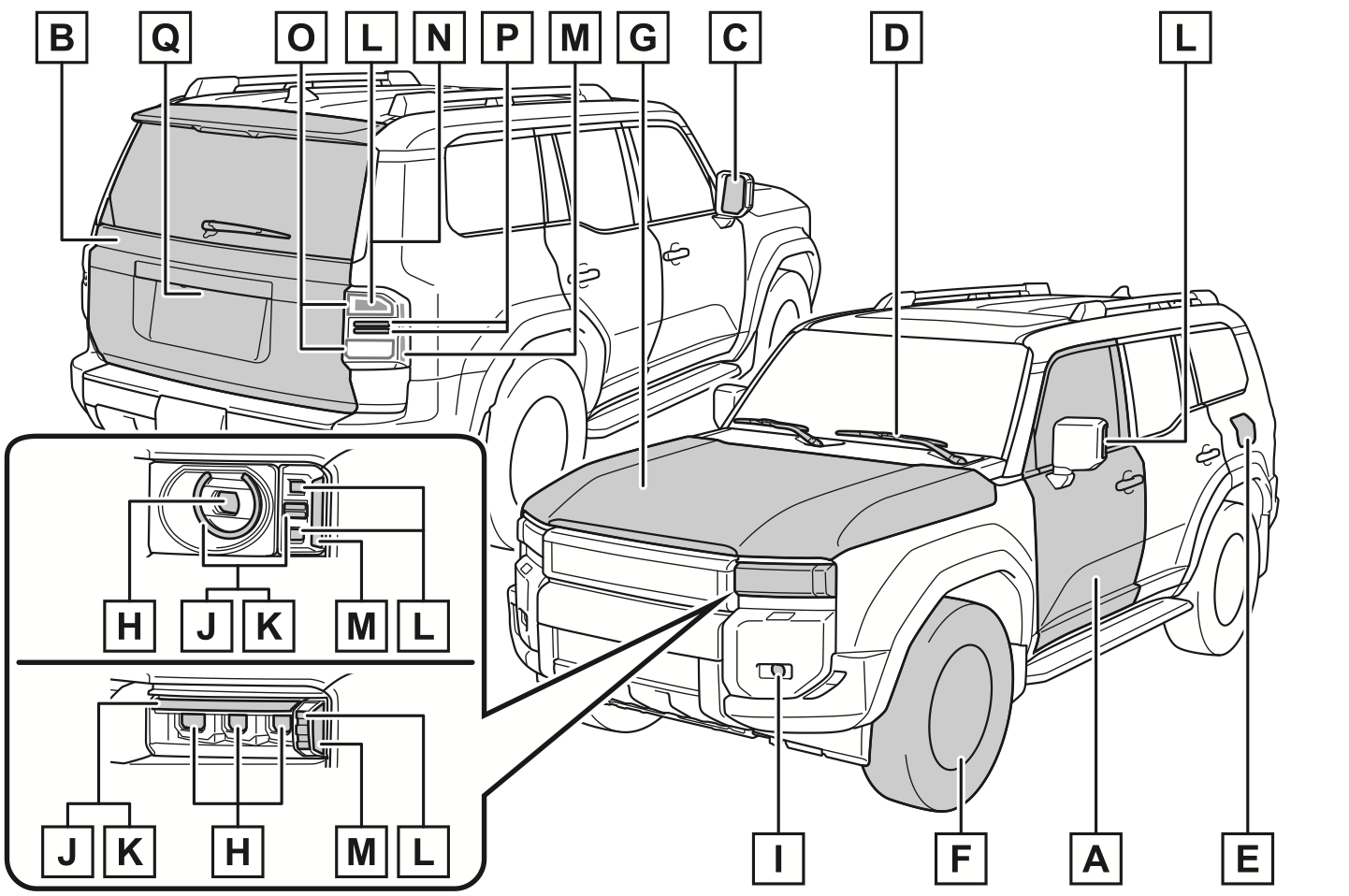

Exterior

1. Side Doors P.129
   Locking Unlocking P.129
   Opening/closing the side windows P.181
   Locking/unlocking using mechanical key P.618
   Warning messages P.598

2. Back Door P.134
   Locking/unlocking P.136
3. Outside rear view mirrors P.177
4. Windshield wipers P.246
5. Fuel filler door P.251
6. Tires P.551
7. Hood P.540
8. Headlights P.240
9. Fog Lights P.245
10. Parking lights P.240
11. Daytime running lights P.240
12. Turn signal lights P.233
13. Side marker lights P.240
14. Stop lights P.86
15. Tail lights P.240
16. Back-up lights
17. License plate lights

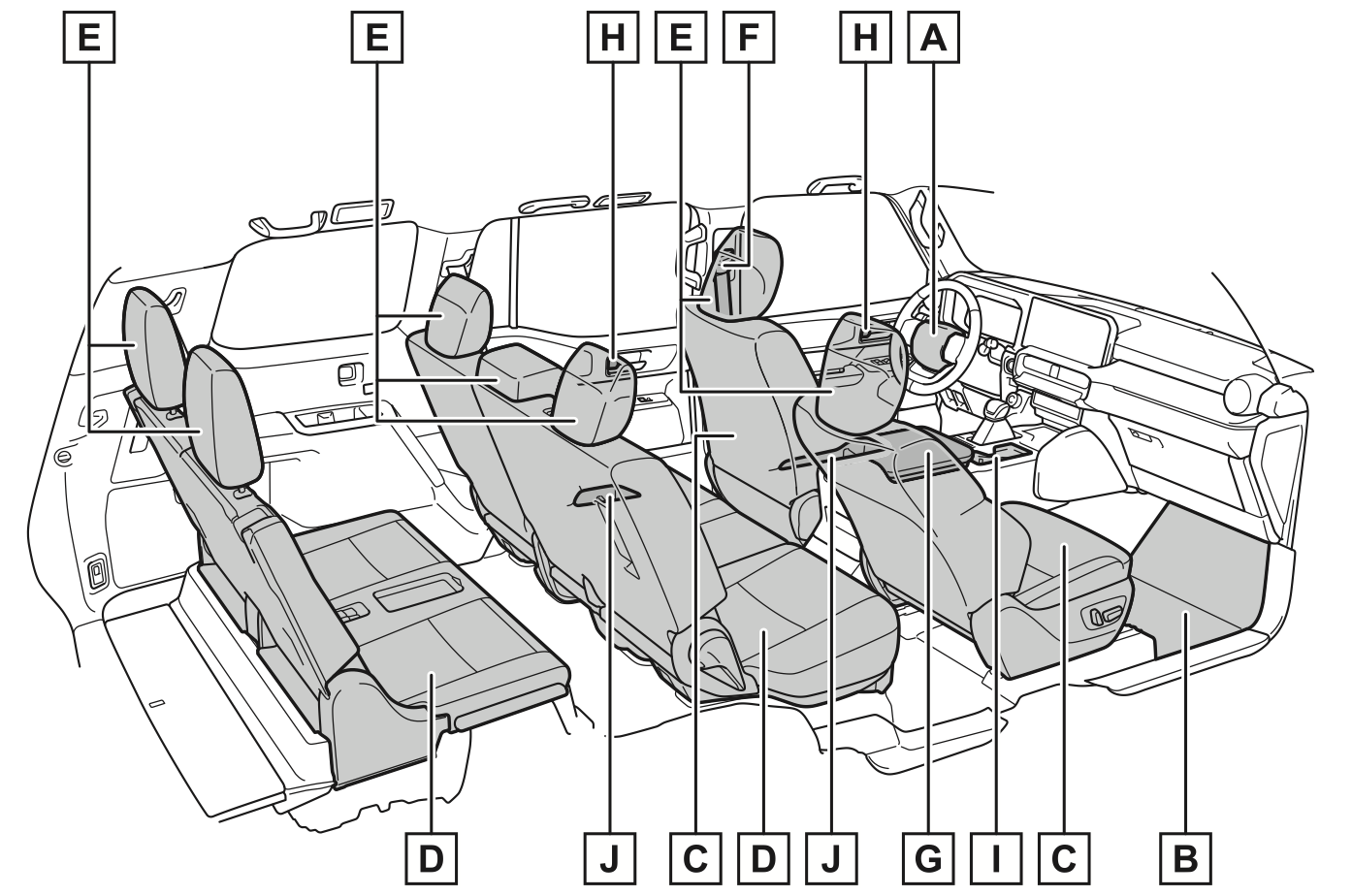

Interior

1. SRS Supplemental Restraint System
2. Floor mats
3. Front seats
4. Rear seats
5. Head restraints
6. Seat belts
7. Console box
8. Inside lock buttons P.132
9. Cup holders
10. Bottle Holders

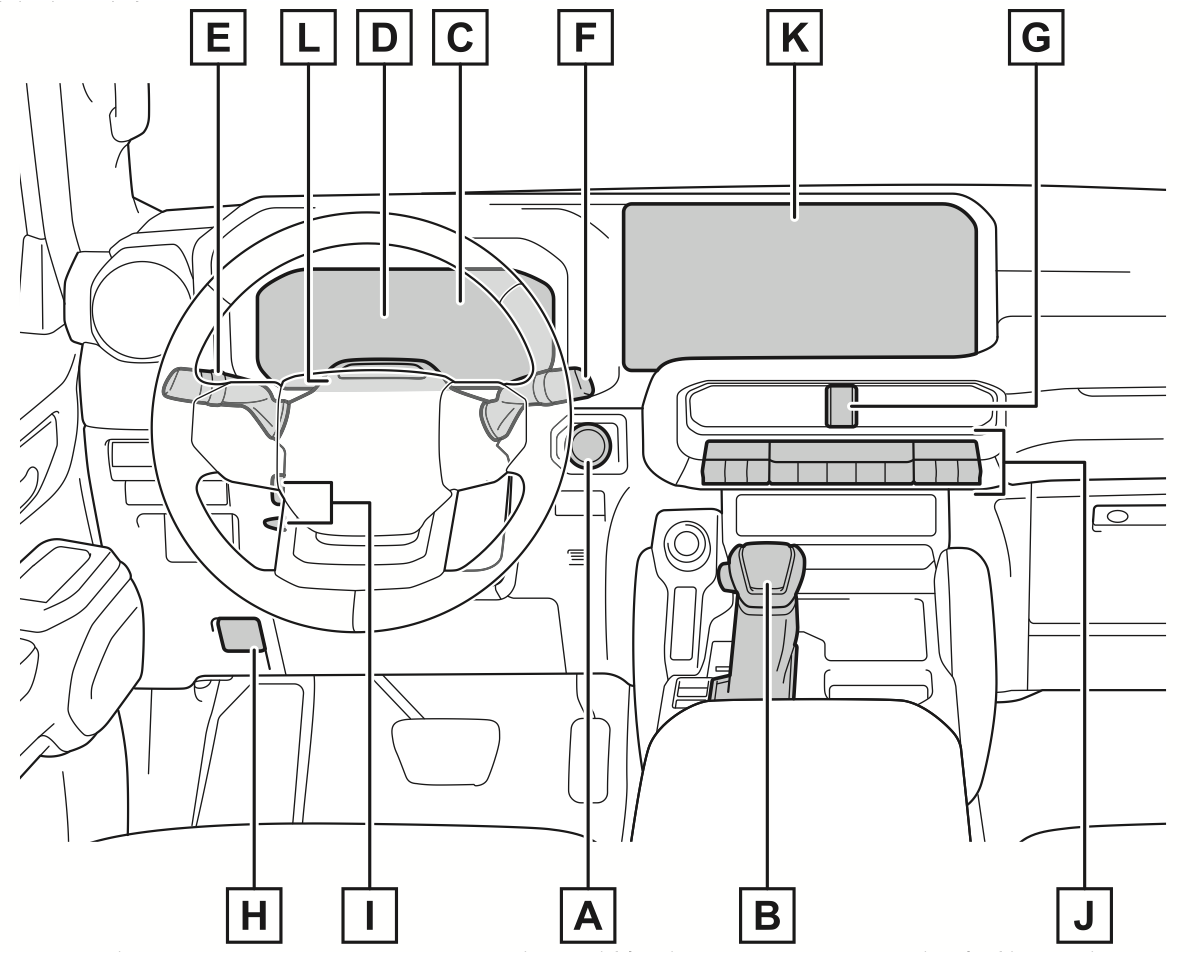

Instrument Panel

1. Power Switch P.222
2. Shift Lever P.227
3. Meters P.92
4. Multi-Information Display P.96
5. Turn Signal Lever P.233
   Fog Light Switch P.245
   Headlight Switch P.240
   Headlight Manual High Beams P.244
   Headlight Automatic High Beams P.242
6. Windshield Wiper P.246
   Rear Window Wiper P.248
7. Emergency Flashers P.580
8. Hood Lock Release P.540
9. Steering Tilt and Telescopic P.165
10. Air Conditioning System P.468
11. Audio System
12. Driver Monitor Camera P.266

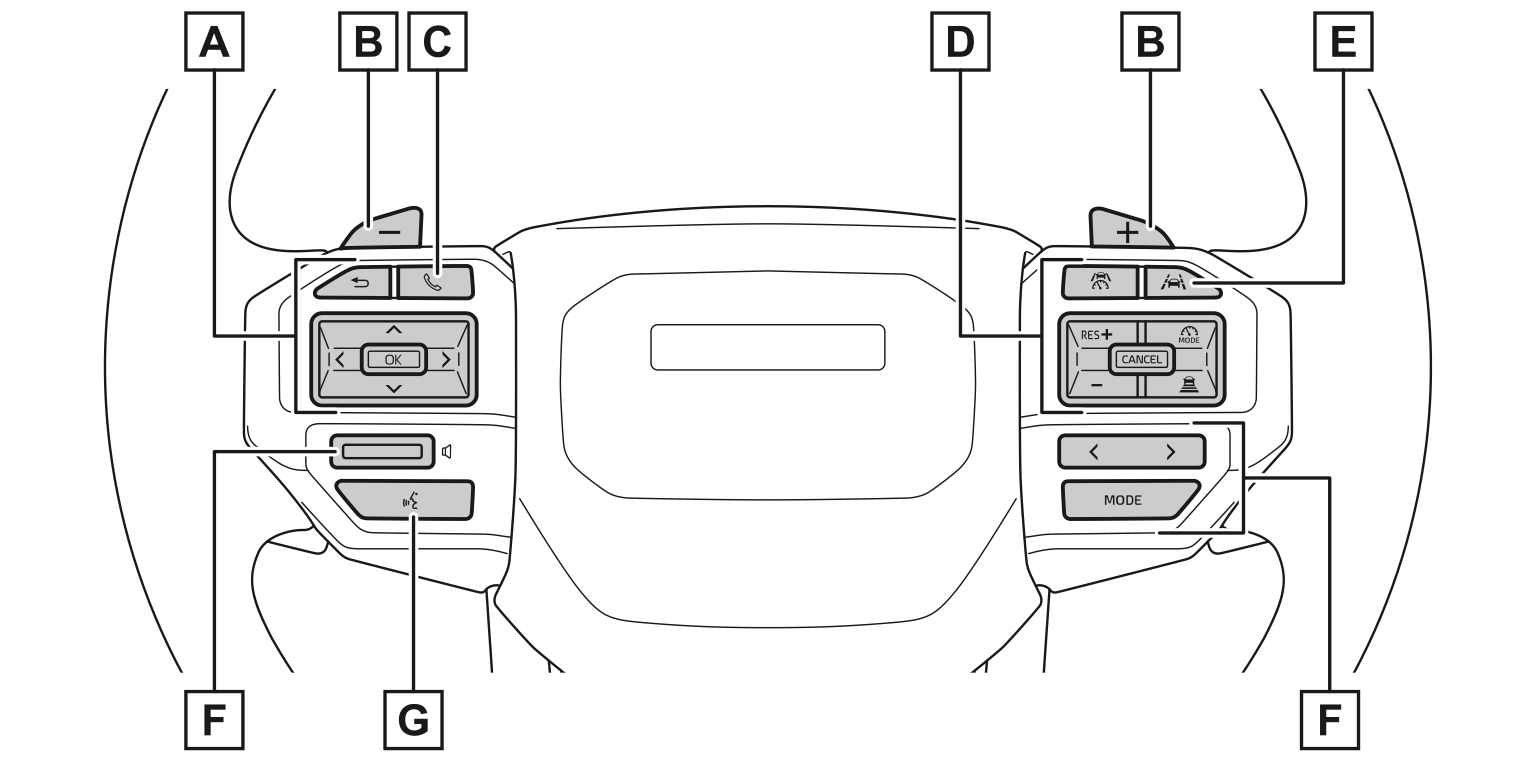

Steering Wheel Switches

1. Meter Control Switches P.97
2. Paddle Shift switches
3. Telephone switch P.132
4. Cruise control switches P.305 P.316
5. LTA Lane Tracing Assist switch P.280
6. Audio Remote Control Switches
   Volume Control p.28
   < > Next/Prev Button p.28
   Mode (source) Button p.30
7. Talk switch

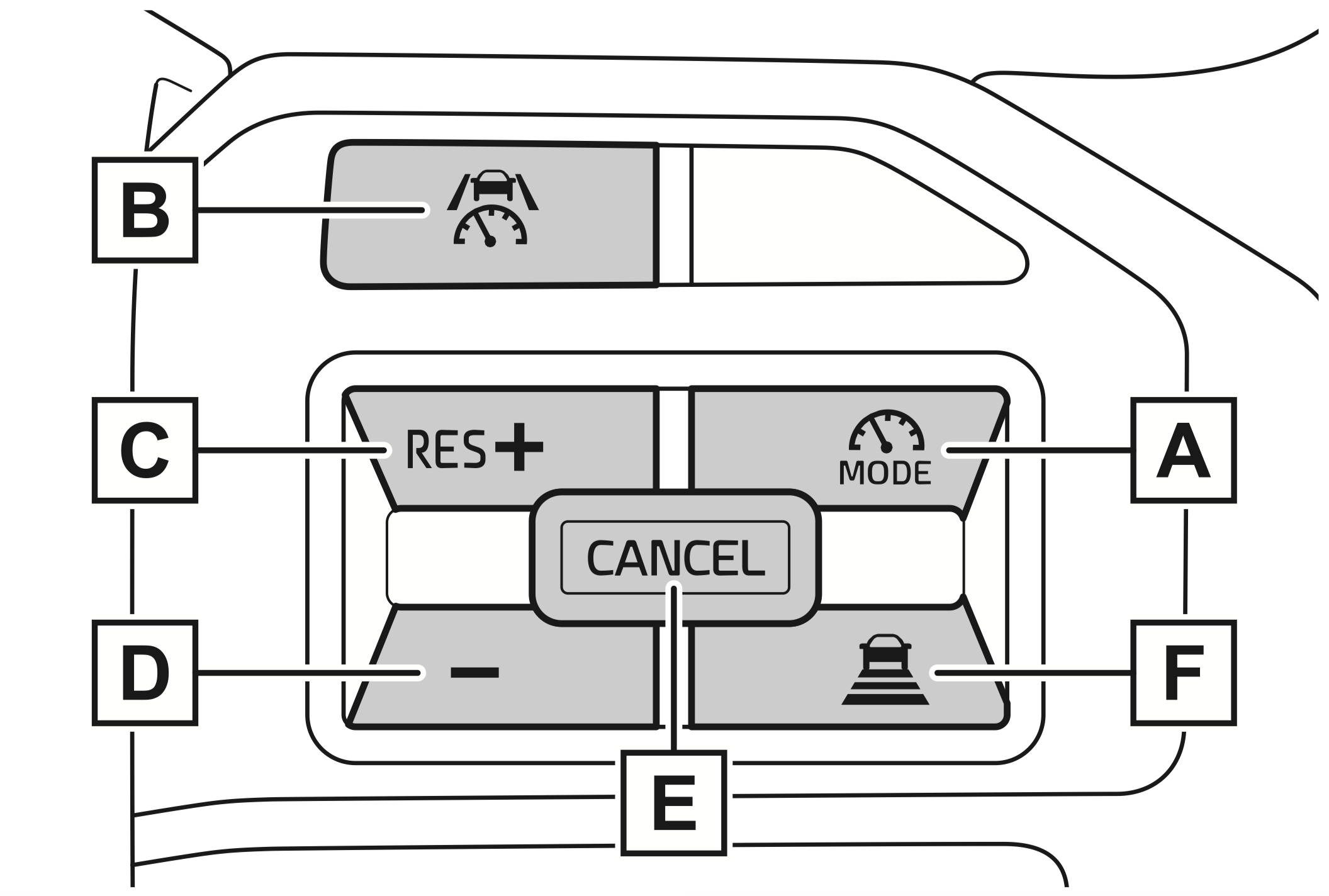

Cruise Control Switches

1. Driving Assist Mode Select Switch p.309
2. Driving Assist Switch p.309
3. + Switch/ RES Switch p.309
4. - Switch p.309
5. Cancel Switch p.310
6. Vehicle to Vehicle Distance Switch p.310

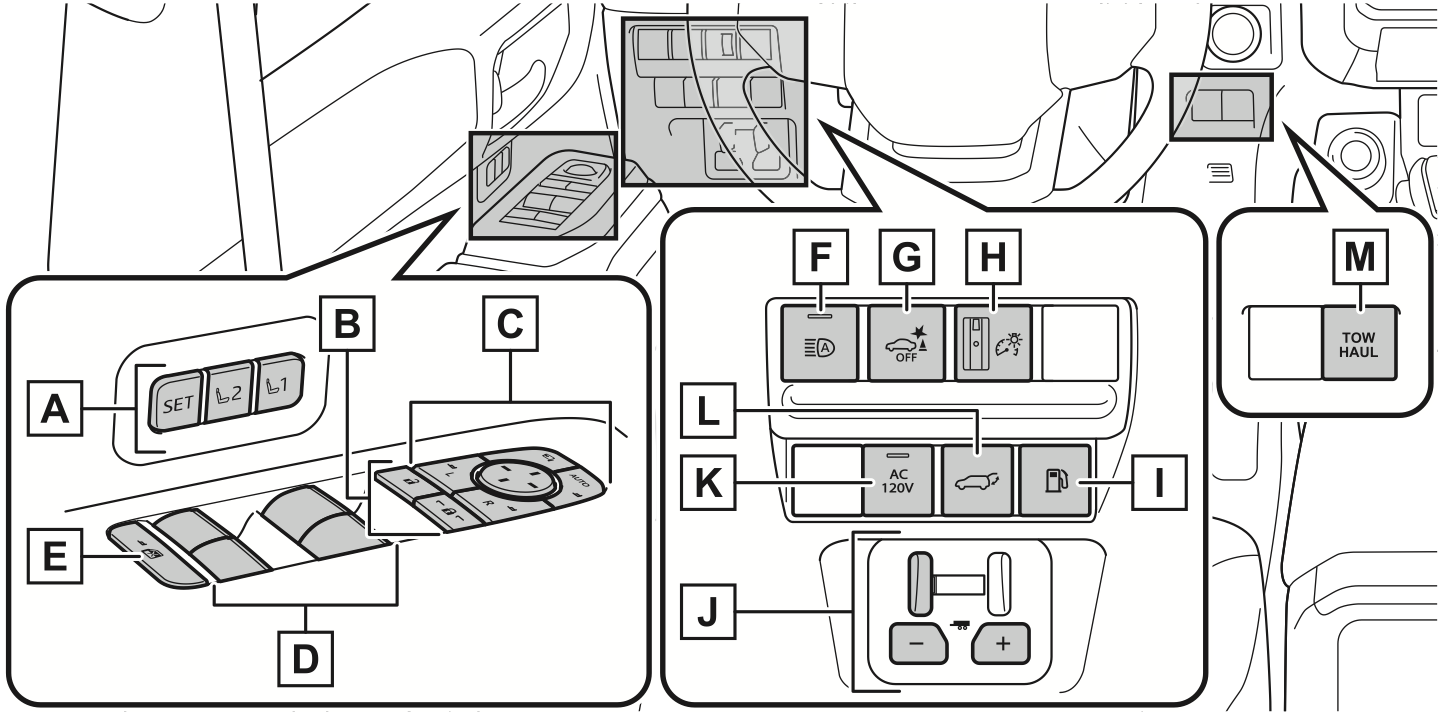

Door Switches

1. Driving position memory buttons P.187
2. Door lock switches P.132
3. Outside rear view mirror switches P.177
4. Power window switches P.181
5. Window lock switch P.183
6. Automatic high beam switch AHB P.242
7. PKSB Parking Support Brake switch P.353
8. Instrument panel light control dial P.91 P.95
9. Fuel filler door opener switch P.251
10. Trailer brake control switch P.453
11. TOW HAUL switch P.232

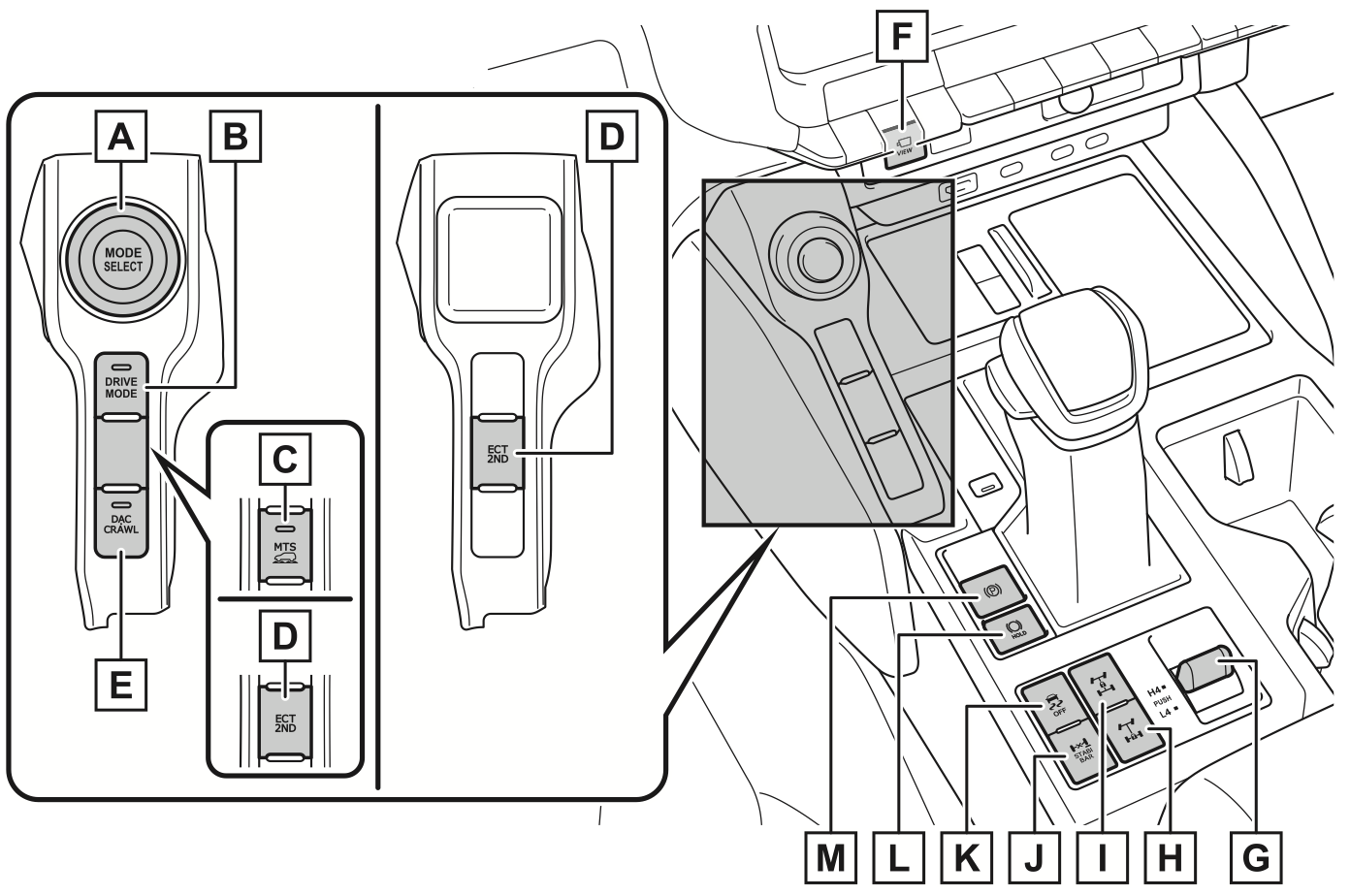

Center Console Switches

1. Drive mode select. Turn the DRIVE MODE switch to Normal, Eco Drive, or Sport modes. P.433
2. Drive mode button. Press the DRIVE MODE switch and turn the MODE SELECT switch to select Normal, Eco Drive, or Sport modes. P.433
3. MTS Multi-terrain switch. Off-road only. Press the MTS switch. Turn the MODE SELECT switch to Auto, Sand, Mud, or Rock for L4. Turn the MODE SELECT switch to Auto, Dirt, Sand, Mud, or Deep Snow for H4. P.433
4. Second start mode switch. Start the car in 2nd gear. P.433
5. DAC/CRAWL Downhill Assist Control switch. Press the switch and turn the DRIVE MODE switch to select Lo, Lo-Mid, Mid, Mid-Hi, or Hi. The Crawl indicator will come on. P.439
6. Camera Switch. Cycle through all of the camera views on the multimedia display. P.368
7. Four-wheel drive control switch. Stop the vehicle. Shift to Neutral (N). Push and shift the four-wheel drive control to L4. 4LO will show on the dash. P.435
8. Center differential lock switch. Stop the vehicle. Shift to Neutral (N). Push the center differential lock switch. The center differential lock indicator will come on. P.435
9. Rear differential lock switch. Use this when 1 rear wheel is spinning. Stop the vehicle. Shift to Neutral (N). Push the rear differential lock switch. The rear differential lock indicator will come on. P.437
10. SDM Stabilizer with Disconnection Mechanism switch. Off-road use. Stop the vehicle and press the SDM button. The SDM indicator light will come on. P.456
11. VSC Vehicle Stability Control OFF switch. P.449
12. Brake hold switch. The brake hold system keeps the brake applied when the shift lever is in D, M, N or P with the system on and the brake pedal has been depressed to stop the vehicle. The system releases the brake when the accelerator pedal is depressed with the shift lever in D or M to allow smooth start off. P.237
13. Parking brake switch. Hold the parking brake switch until it beeps to turn on auto mode. This puts the brake on when in park. P.233

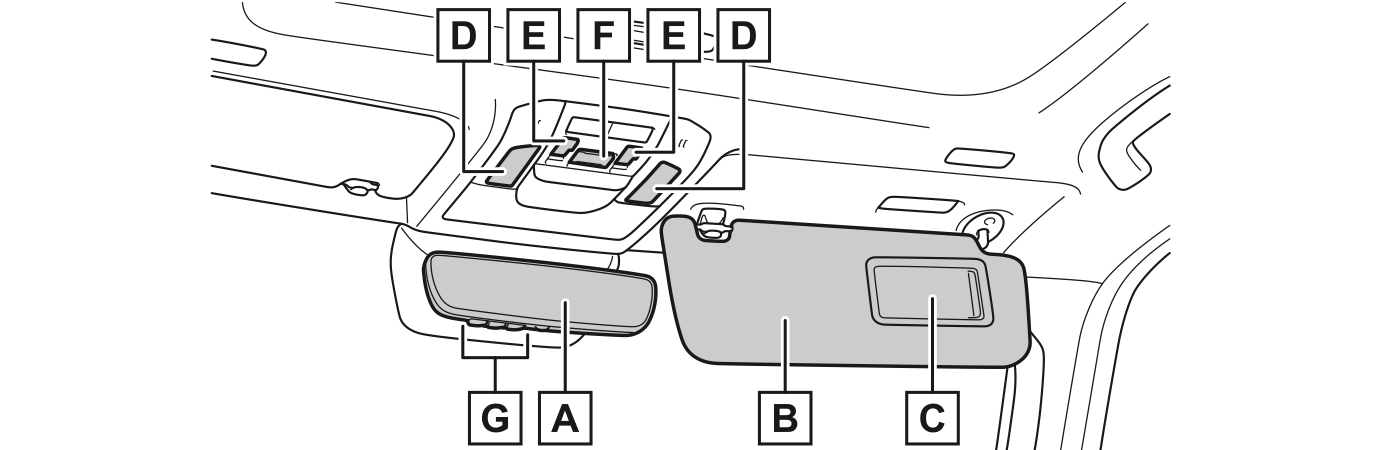

Ceiling Switches

1. Inside rear view mirror
2. Sun visors
3. Vanity mirrors
4. Interior lights
5. Moon roof switches P.184
6. SOS button P.66
7. Garage door opener buttons P.517

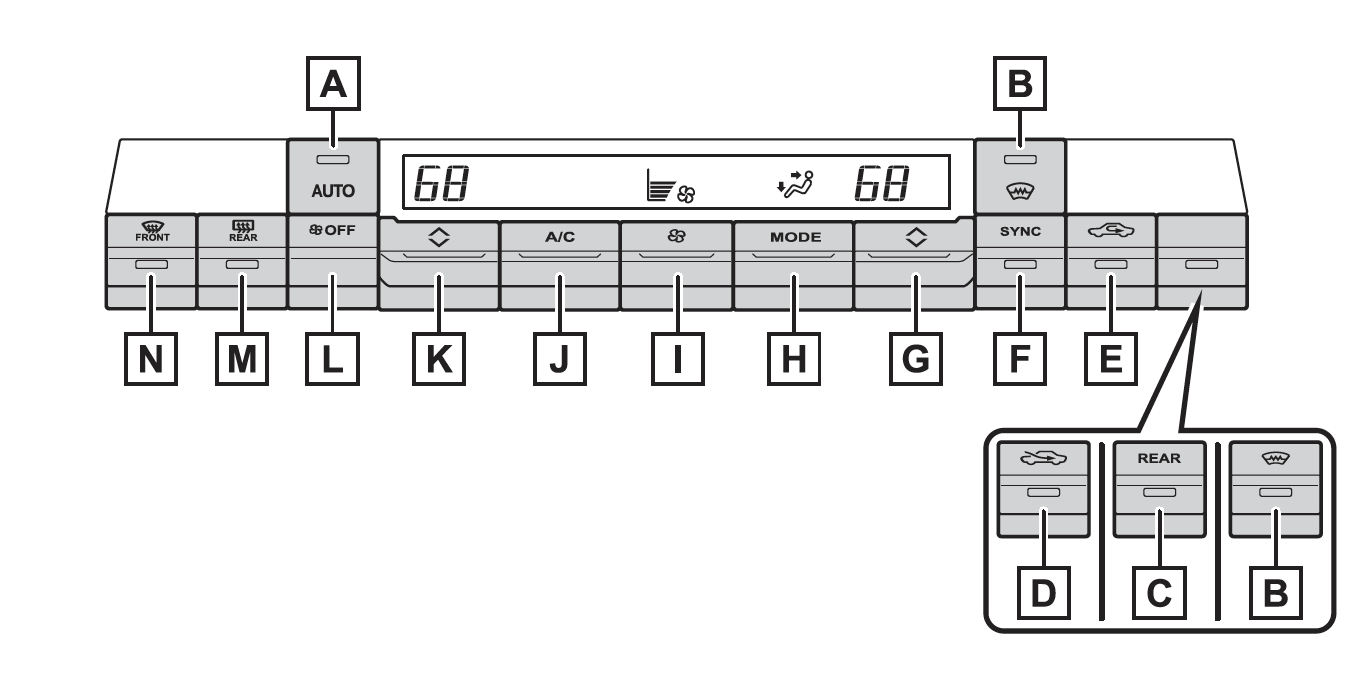

Air Conditioning Controls

1. Automatic Mode Switch P.472
2. Windshield De-icer Switch P.468
3. REAR switch P.474
4. Outside Air Mode Switch P.469
5. Recirculated Air Mode Switch P.469
6. SYNC Switch P.473
7. Right-hand Side Temperature Control Switch P.474
8. Airflow Mode Control Switch P.469
9. Fan Speed Control Switch P.469
10. A/C Switch P.469
11. Left-hand Side Temperature Control Switch P.474
12. Fan OFF Switch P.469
13. Rear Window and Outside Rear View Mirror Defoggers P.470
14. Windshield Defogger Switch P.470

1. Air conditioning cabin filter change P.566

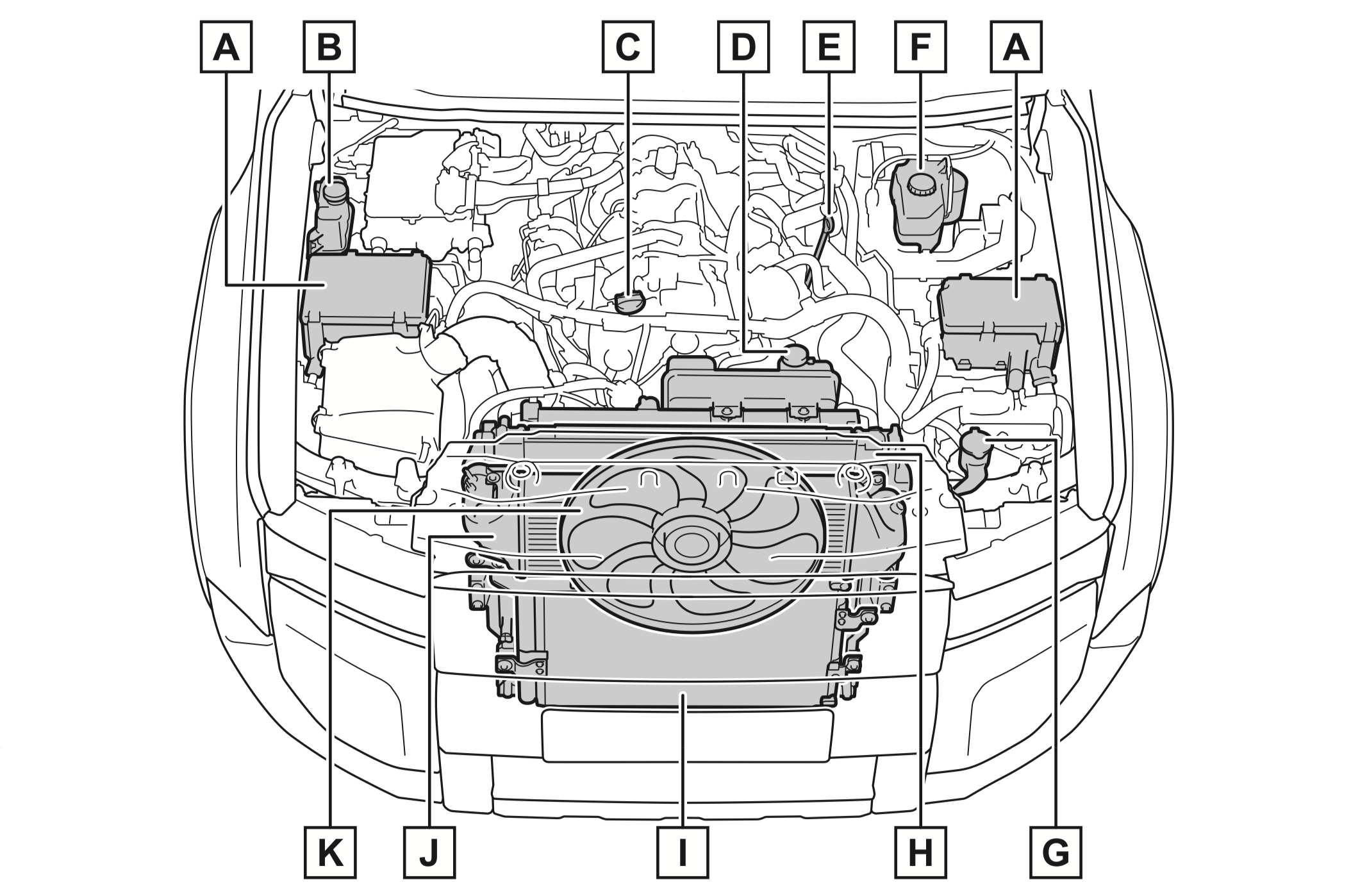

Engine Compartment

1. Fuse Boxes P.573
2. Power Control Unit Coolant Reservoir P.545
3. Engine Oil Filler Cap P.544
4. Engine Coolant Reservoir P.545
5. Engine Oil Level Dipstick P.542
6. Brake Fluid Reservoir P.544
7. Washer Fluid Tank P.547
8. Engine Radiator P.546
9. Condenser P.546
10. Intercooler Radiator P.546
11. Cooling Fan P.546

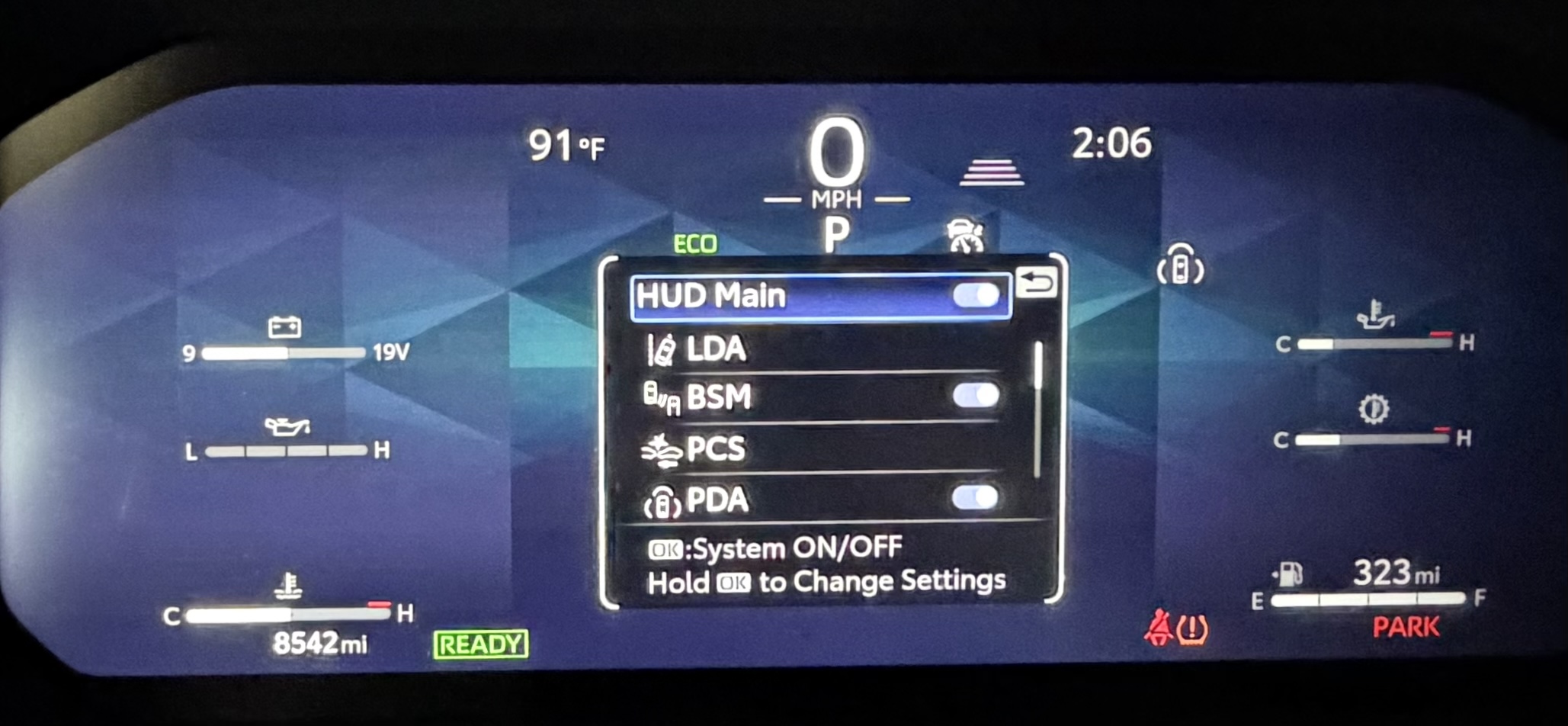

Settings Display

Turn on the engine, and press the OK button on the steering wheel to display the settings menu. Hit the down arrow key and find a gear (Settings) then press OK. P.649

Main Settings

Heads Up Display HUD Settings

Vehicle Settings

Meter Settings

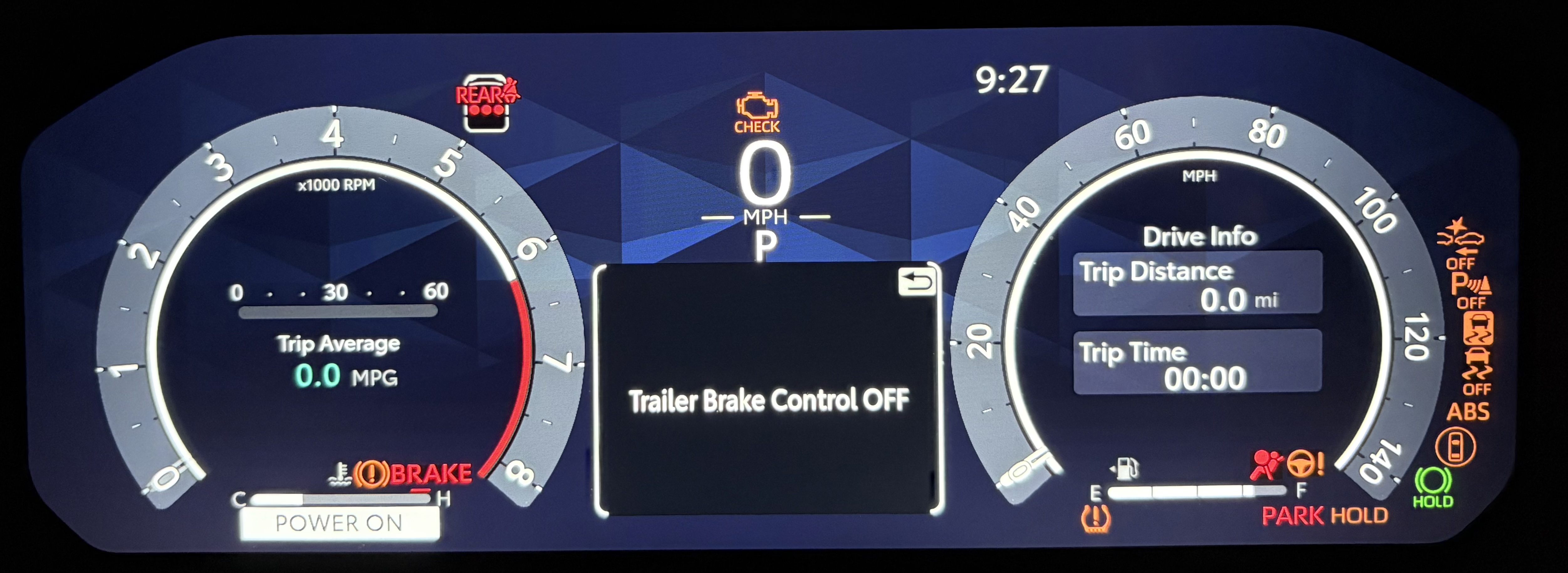

Dashboard Lights

The dashboard is sometimes called the meter in the user manual.

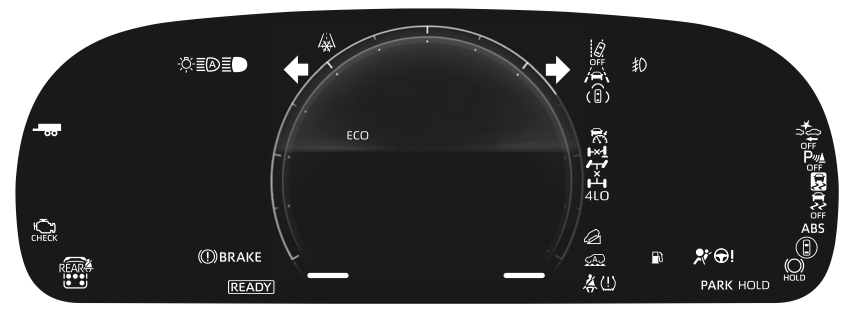

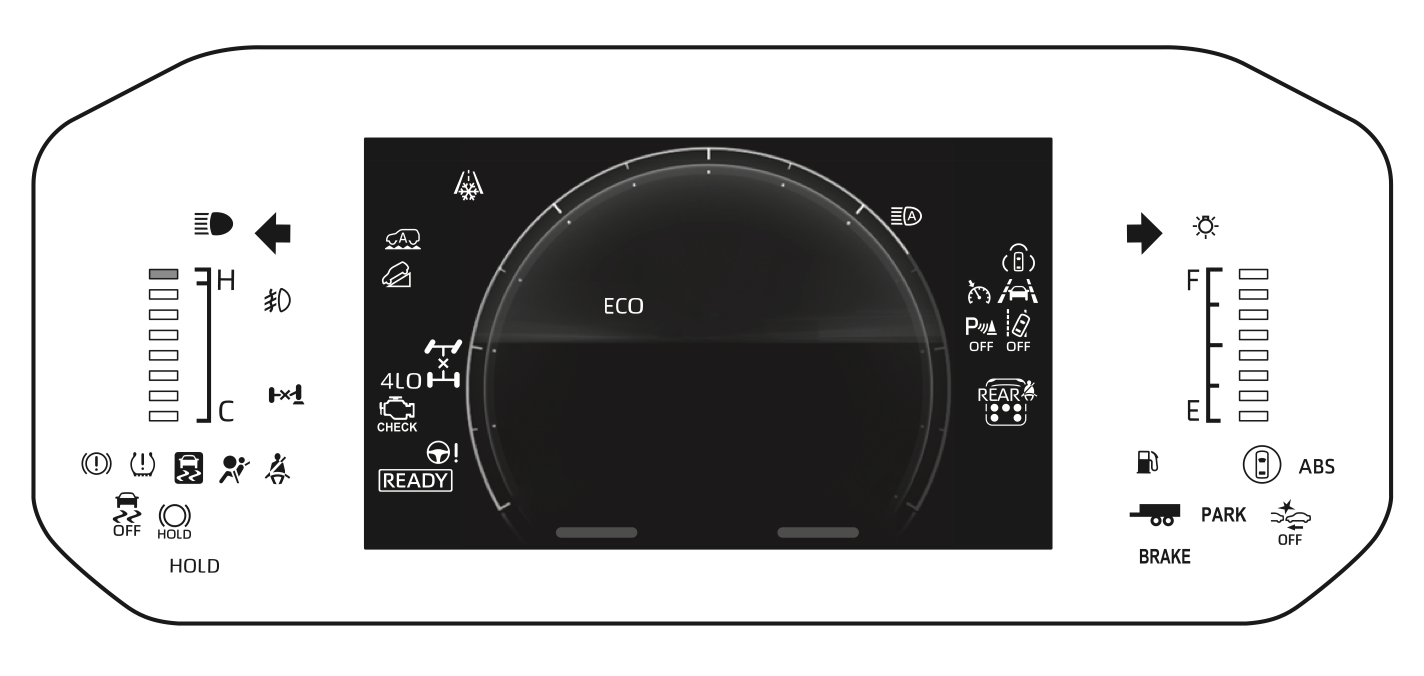

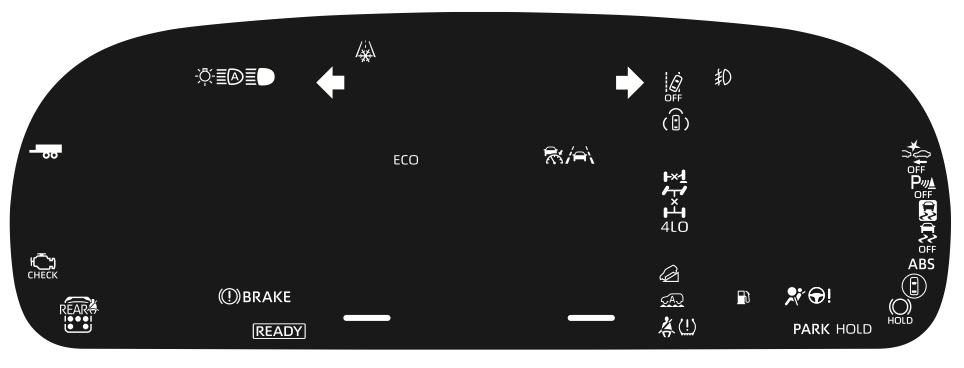

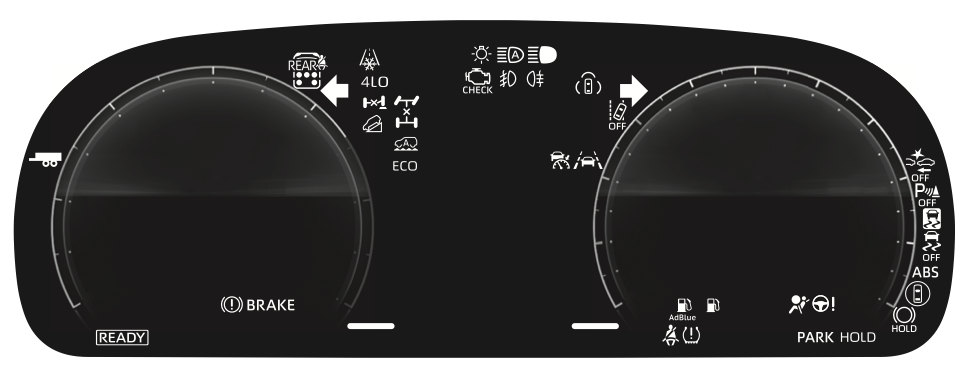

Warning Lights

Click on the lights to go to the reference manual description.

Light	Description
	Brake System Warning p.587
	Brake System Warning p.587
	Charging system p. 587
	Low engine oil pressure p. 588
	High coolant temperature p. 588
	Check engine malfunction p. 588
	SRS Supplemental Restraint System p. 588
	ABS Antilock Braking System p. 589
	Power steering system p. 589
	PCS Pre-Collision System (VSC Vehicle Stability Control) p. 590
	LTA Lane Tracing Assist (green:operating) p.590
	LDA Lane Departure Alert p. 590
	LDA Lane Departure Off p. 292
	PDA Proactive Driving Assist (avoid objects) p. 590
	Cruise Control (green:on) p. 590
	Dynamic radar cruise control (green:on, brake for objects) p. 591
	Driving assist information indicator (malfunction) p. 591
	Intuitive Parking Assist (alert when objects are close) p. 338
	Intuitive Parking Assist Off p. 338
	Inappropriate pedal operation p. 592
	Slip Indicator Light (traction control is on) p. 449
	Trailer brake warning light p. 592
	Low speed four-wheel drive p. 435
	Center differential lock p. 435
	Rear differential lock p. 437
	Parking brake indicator p. 233
	Brake hold standby indicator p. 237
	Brake hold operated indicator p. 237
	Low fuel level warning p. 594
	Tire pressure warning p. 594
	Front seat belt reminder p. 594
	Rear seat belt reminder p. 595

Indicator Lights

Light	Description
	Turn signal indicator p. 233
	Headlight indicator p. 240
	Tail light indicator p. 240
	Headlight high beam indicator p. 244
	Automatic high beam indicator p. 242
	Fog light indicator p. 245
	PCS Pre-Collision System warning light p. 269
	Outside rear view mirror indicators p. 328
	VSC Vehicle Stability (control skidding) p. 449
	DAC Downhill Assist Control (4HI 3-18MPH) p. 445
	Crawl control indicator p. 439
	Second Start Mode (slippery road) p. 230
	Tow Haul (hauling trailers) p. 232
	SDM Stabilizer with Disconnection Mechanism (offroad) p. 456
	ECO Mode (fuel economy) p. 433
	SPORT Mode (performance) p. 433
	Auto Mode (multi-terrain) p. 442
	Dirt Mode (multi-terrain) p. 442
	Sand Mode (multi-terrain) p. 442
	Mud Mode (multi-terrain) p. 442
	Snow Mode (multi-terrain) p. 442
	Rock Mode (multi-terrain) p. 442
	Security indicator p. 77
	Smart Key System Indicator p. 222
	Power ignition switch p. 222
	Low outside temperature indicator p. 94
	Steering Assist (keep hands on wheel) p. 290
	Stop (Brakes) p. 88

Maintenance

1. Air Conditioning Cabin Filter Replacement P.566
2. Brakes, Chassis Lubrication, Steering P.636
3. Cooling, Ignition P.634
4. Dimensions and weight P.630
5. Electrical, Differential, Automatic Transmission, Transfer P.635
6. Engine, Fuel, Electric Motor, Hybrid Battery P.632
7. Fuel P.638
8. Lubrication P.633
   Oil Maintenance P.544
9. Tires, Wheels P.637 P.640
   Tire Pressure: 33.5lb. P.637
   Tire Pressure Warning System Initialize (rotation) P.554
